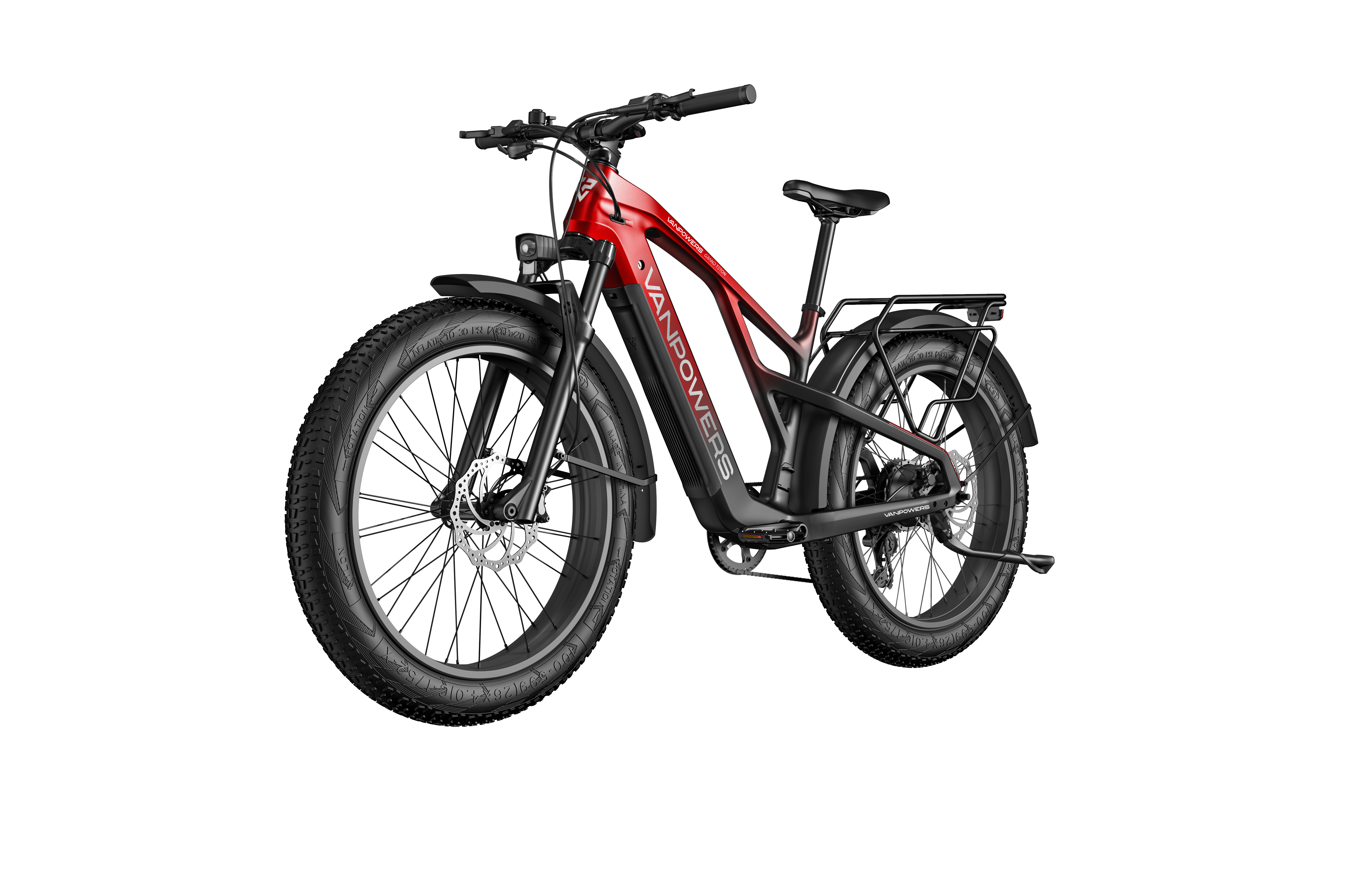

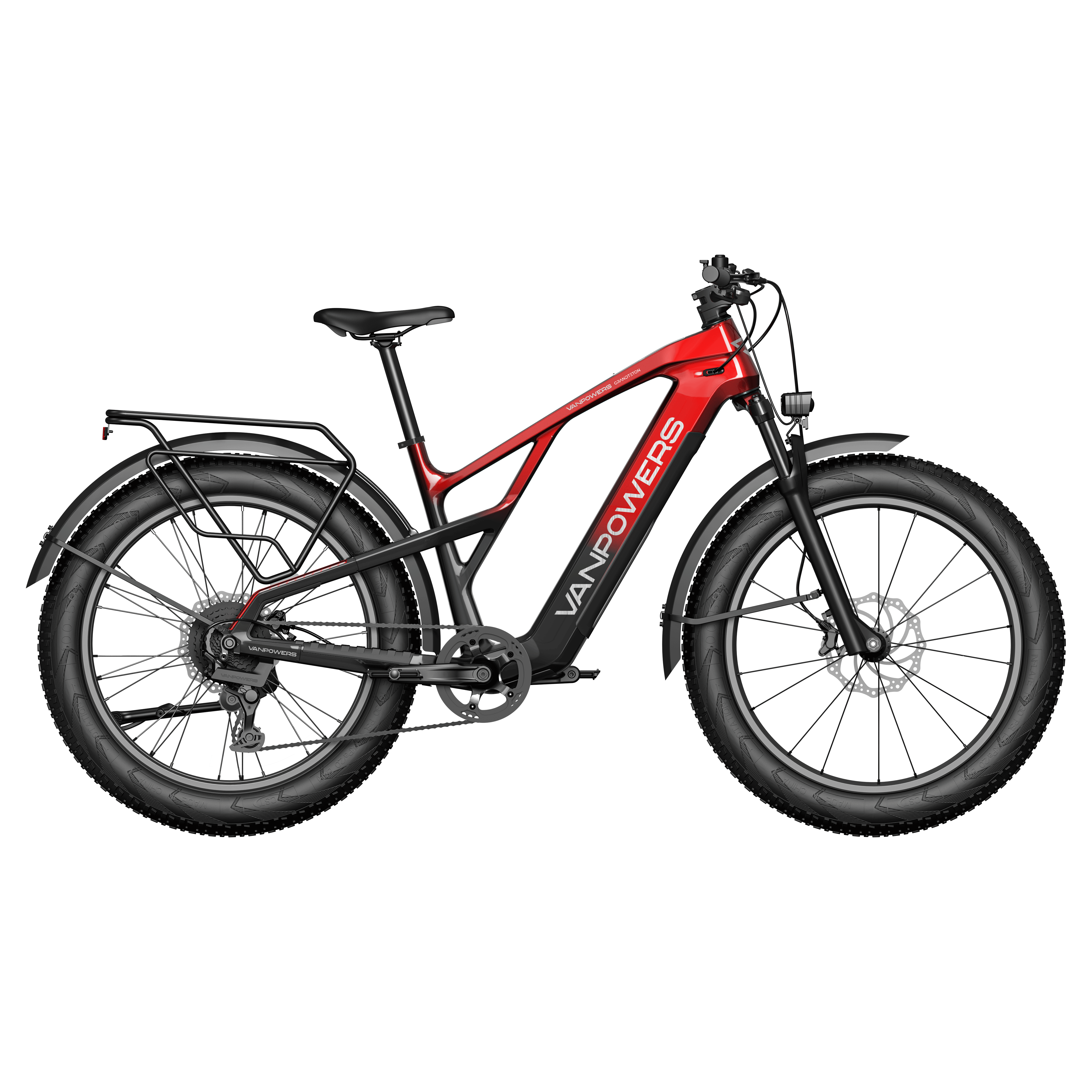

GrandTeton-Pro
Early-Bird Exclusive Offer
Pick Your Accessories

Size & Fit
Size & Fit
A | Seat Tube Length (S/T) | 460 |
B | Top Tube Length Horizontal (T/T") | 648 |
C | B.B.Drop | 60 |
D | Head Tube Length (H/T) | 140 |
E | Seat Tube Angle (S/A) | 73.5 |
F | Head Tube Angle (H/A) | 68 |
G | Rear Wheel-to-Center (R/C) | 490 |
H | Front Wheel-to-Center(F/C) | 760 |
I | Wheel Base (W/B) | 1244 |
J | Reach | 450 |
K | Stack Height | 668 |
L | Fork Length (F/K) | 540 |
M | Fork Offset | 58 |
N | Trail | 85 |
Stand Over Height | 700 | |
User Body Height (Range) | 1650-1850 |
165-190cm


Assist Speed
20 Mph
Range
65 Miles
Weight
73 Lbs (33.4 Kg)
Maximum Load Capacity
400 Lbs (181 Kg)
Motor
750W High-Speed Brushless Hub Motor
Sensor
Torque Sensor
Battery
48V 14.7Ah Removable Lithium-ion Battery, LG/Samsung Cells
Charger
54.6V/3A Fast Charger
Display
1.9 Color TFT-LCD Display Adaptive Brightness, Bluetooth
Throttle
Left-hand Thumb Throttle
Front Light
High Beam/Low Beam
Tail Light
Constant Illumination / Brake Flashing
APP
VanLife App
Smart System (TBox)
No
Frame
6061 Al Alloy Frame
Front Fork
Suspension Fork with Lockout 120mm Travel
Rear Derailleur
Shimano® CUES 4000, 1X9 Speed
Crankset
42T Chainring, 170mm Crank
Cassette
Shimano® 9 speed cassette, 11-41T
Chain
Shimano® CN-LG500
Brakes
Tektro® 4-Piston Hydraulic Disc Brake 203mm Rotors
Rims
Aluminum Alloy, Double Wall
Front Hub
15*150mm, Boost Thru-Axle
Spokes
36*2 Stainless Steel Spokes
Tires
CST ® 26" *4.0" Tires, 60TPI
Tubes
CST ® 26"*4.0" Tubes
Handlebar
Zoom® Aluminum Alloy, 720mm length
30mm rise, 9-degree back sweep
Stem
Aluminum Alloy Stem, 47.5mm, -10 degree
Seat Post
Zoom® Aluminum Alloy Seat Post, 30.9mm
320mm, with Quick Release Clamp
Saddle
Selle Royal® A069H Saddle
Fenders
Aluminum Alloy Fenders
Rear Rack
Aluminum Alloy, Max Load 25kg
Weight
32.1 kg
Grips
DDK® DGT-2200/B. Size 135 mm
Kickstand
Aluminum Alloy
